SVC-20000VA/3 | SVC-9000VA/3 |  SVC-15000VA/3 |
SVC-30000VA/3 | SVC-60000VA/3 |

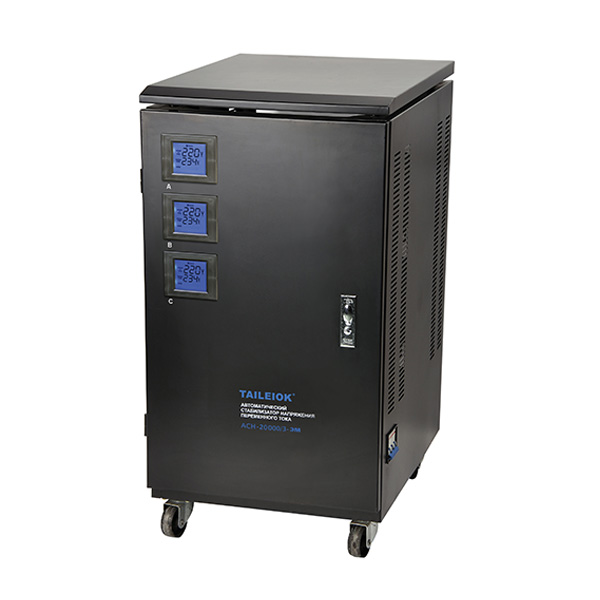

♦ VC Series vertical three phase servo type high accuracy full automatic AC voltage regulator adopts the international advanced technology and intelligent CPU centralied control technology.
♦ It has the advantages of high efficiency, beautiful appearance and reliable performance,easy to moving,large capacity and so on. which is composed of servo motor,control circuit,compensator.
♦ it has advantages of small volume,light weight,high efficiency,high precision,wide voltage stabilizing range,no waveform distortion etc . All products have over voltage, delay, temperature and error protection and also voltage two-way indication. which make the function of the product more perfect and reliable.
♦ To ensure quality,we introduce the advanced technology abroad,main parts adopts import spares.They are widely used in the fields of household appliances,industrial and agricultural production,scientific research,medicine and health areas.
SPECIFICATIONS:
Input voltage | phase voltage 160~250V AC wirte voltage 277~430V AC |
Input frequnency | 50/60Hz |
Output voltage | phase voltage 220V AC wire voltage 380V AC |
Output precision | 380V+/-3% |
Time delay | 3′s short time,180′s long time |
Load power factor | 0.8 |
Phase | three phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI | |
DIMENSION WEIGHT
MODEL | QTY/CTN | MEAS(cm) | G.W.(kg) | N.W.(kg) | COMTAINER20(PCS) |
SVC-3000VA/3 | 1 | 38*53*20.5 | 18 | 16.5 | 670 |
SVC-6000VA/3 | 1 | 37*39.5*73 | 31 | 28 | 245 |
SVC-9000VA/3 | 1 | 37*39.5*81 | 38 | 35 | 220 |
SVC-15000VA/3 | 1 | 42.5*42*88 | 60 | 54 | 165 |
SVC-20000VA/3 | 1 | 50.5*44.5*86 | 82 | 74 | 135 |
SVC-30000VA/3 | 1 | 50.5*44.5*86 | 91 | 84 | 135 |
SVC-45000VA/3 | 1 | 74*65*112 | 182 | 165 | 50 |
SVC-60000VA/3 | 1 | 76*68*121 | 210 | 185 | 41 |
SVC-90000VA/3 | 1 | 78*74*132 | 230 | 210 | 35 |
PRECAUTIONS:
| 1. The voltage of network input must conform to the demand of AVR, for optimum operation.2. Connect all plugs securely.3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)4. For best results, do not use if overload condition exists.5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids.6. The relationship between the output capacity and input voltage as following picture and diagram: |  |
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
