Important parameter:

Specifications Dimension Panel Cutout:Φ22mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP67
Max. Current:5A
Max. Voltage:250V
Operation type:Momentary/Latching
Illuminated or not:Illuminated or non-illuminated
Illuminated type:Ring led,dot led
Head type:Flat round head,high flat round head,dome head ,power symbol head
Material:Stainless steel/Aluminum oxide

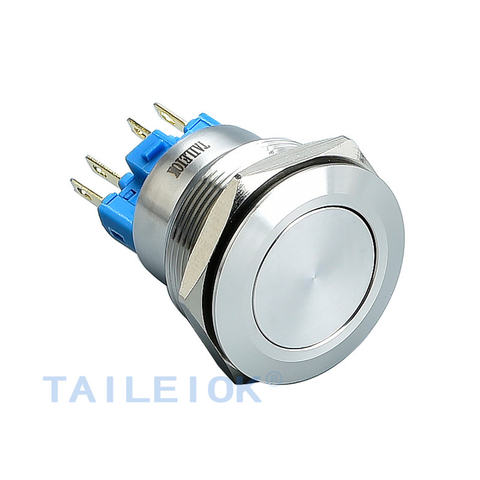

22mm Metal Push Button Switch
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Type:6 PIN
Welding foot/Terminal:6 Pin Welding foot
Product type:Push Button Switch
Mounting Hole Size:Dia 22mm
LED voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v etc.

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm、19mm、22mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Max. Current:5A
Max. Voltage:250V
Operation type:Momentary
Illuminated or not:Illuminated or non-illuminated
Head type:Flat round head,high flat round head ,power symbol head
Material:Stainless steel/Brass nickel plated
16mm Metal Push Button Switch
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Type:2/4 PIN
Terminal:2/4 Pin Terminal
Product type:Push button 4 pin on off switch/Short touch push button
Mounting Hole Size:Dia 16mm
LED voltage:3v,5v,6v,12v,24v,36v,110v,220v etc.

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Max. Current:3A
Voltage:36V(DC) 250V(AC)
Switch Combination:1NO1NC、2NO2NC
Operation type:Latching
Head shape:Mushroom Head/Big Mushroom Head
Material:Stainless steel
Feature:Water-proof
Housing Color:Red
Type:3/6PIN
Terminal type:3/6Pin terminals
Product type:Mushroom Emergency Stop Push Button Switch
Mounting Hole Size:Dia 16mm

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Max. Current:3A
Voltage:36V(DC) 250V(AC)
Switch Combination:1NO1NC、2NO2NC
Operation type:Latching
Head shape:Mushroom Head/Big Mushroom Head
Material:Stainless steel
Feature:Water-proof
Housing Color:Red
Type:3/6PIN
Terminal type:3/6Pin terminals
Product type:Mushroom Emergency Stop Push Button Switch
Mounting Hole Size:Dia 16mm

Important parameter:

Specifications Dimension Panel Cutout:Φ12mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Max. Current:5A
Max. Voltage:250V
Switch Combination:1NO1NC
Operation type:Momentary/Latching
Illuminated or not:Illuminated or non-illuminated
Illuminated type:Ring led,dot led
Head type:Flat round head,high flat round head,power symbol head,annular
Material:Stainless steel/Brass nickel plated/Aluminum oxide
12mm Metal Push Button Switch
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Type:2 PIN(non-illuminated)/4PIN(Illuminated)
Welding foot/Terminal:2/4 Pin Welding foot
Product type:Push Button Switch
Mounting Hole Size:Dia 12mm
LED voltage:3v,5v,6v,12v,24v,36v,110v,220v etc.

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Max. Current:5A
Max. Voltage:220V
Operation type:Momentary/Latching(16B)
Illuminated or not:Illuminated(4 PIN) or non-illuminated
Head type:Flat round head,high flat round head,dome head ,power symbol head
Material:Stainless steel/Brass nickel plated
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Terminal:2/4 PIN(16B)
Product type:16mm reset screw metal push button switch
Mounting Hole Size:Dia 16mm

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP67
Max. Current:5A
Max. Voltage:250V
Switch Combination:1NO1NC,2NO2NC
Operation type:Momentary/Latching
Illuminated or not:Illuminated or non-illuminated
Illuminated type:Ring led,dot led
Head type:Flat round head,high flat round head,dome head ,power symbol head,annual,annual with power symbol head
Material:Stainless steel/Brass nickel plated/Aluminum oxide
16mm Metal Push Button Switch
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Type:3/5/6/8 PIN
Welding foot/Terminal:3(non-illuminated)/5(Illuminated)/6(non-illuminated)/8(Illuminated) Pin Welding foot
Product type:Push Button Switch
Mounting Hole Size:Dia 16mm
LED voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v etc.

Important parameter:

Specifications Dimension Panel Cutout: Φ16mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Material:Stainless steel/Brass nickel plated
Color:Yellow/blue/red/green/white
Type:Equipment Indicator Lights(LED)
Terminal: Wires
Body: Nickel plated brass/Stainless steel
Type:Equipment Indicator Lights
LED voltage:12v,24v,110v,220v
Application:Car Boat Marine

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP67
Current: 5A（DC）5A（AC）
Voltage:36V(DC) 250V(AC)
Material:Stainless steel
Feature:Water-proof
Color:Red
Terminal type:Screw terminal
Mounting Hole Size:Dia 16mm

Important parameter:

Specifications Dimension Panel Cutout: Φ12mm
Place of Origin: Zhejiang, China
Brand Name: TAILEIOK
Protection Level: IP65
Max. Current: 5A
Max. Voltage: 220V
Switch Combination: 1NO
Illuminated or not: Non-illuminated
Head type: Flat head/dome head
