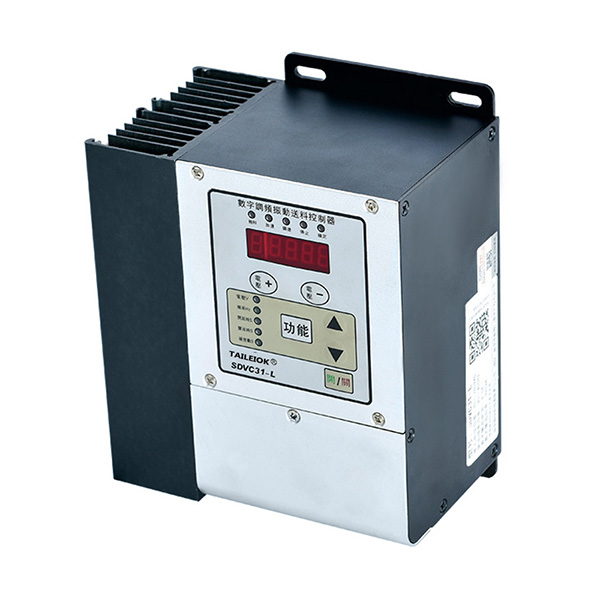

SDVC31-L/XL 4.5A /6A Frequency regulation controller

Short Description:


Product Detail

Product Tags

SPECIFIC:

Item Range Unit Decription
Min Typical Max
Input voltage 85 220 260 V AC RMS
The range of Adjustable output voltage  0 —- 260 V
voltage adjust accuracy 1 V
voltage stabilizer accuracy 0 —– 10 V Vout/  Vin
Response time for voltage stabilize 0.0025 —– 0.025 s
The range of Adjustable output current 0 —– 4.5 A SDVC31-L
0 —– 6 A SDVC31-XL
Output power 0 —– 990 VA SDVC31-L
0 —– 1320 VA SDVC31-XL
Output Frequency 40 —– 400 Hz Half wave
Accuracy of Frequency regulation 0.1
Output Waveform sine
Soft start time 0 —– 10 S
Delay time 0 —– 20 S
Delay accuracy 0.1 S
Overheating protection 60 65 65 C
DC control output voltage 22 24 26 V
DC control output current 0 —– 200 mA
Analog control 1-5 V
Digital control 24 V
Adjusting way 6
No load power consumption —– 3 —– W
Display way 5   LED
Working environment temperature 0 25 40 C
Working environment humidity 10 60 85 %
SIZE 190*147.8*94.5mm Weight  SDVC31-L:1675g/SDVC31-XL:1720g(without accessory
