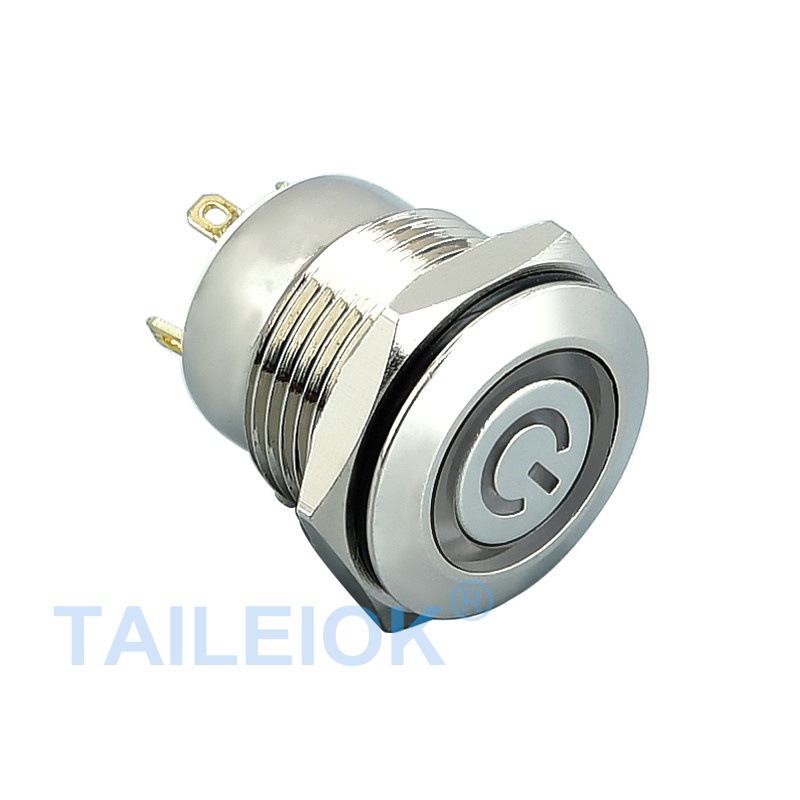

16/19/22mm Momentary Push Button Switch 4 Pin Waterproof

Important parameter:

Specifications Dimension Panel Cutout:Φ16mm、19mm、22mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP65
Max. Current:5A
Max. Voltage:250V
Operation type:Momentary
Illuminated or not:Illuminated or non-illuminated
Head type:Flat round head,high flat round head ,power symbol head
Material:Stainless steel/Brass nickel plated
16mm Metal Push Button Switch
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Type:2/4 PIN
Terminal:2/4 Pin Terminal
Product type:Push button 4 pin on off switch/Short touch push button
Mounting Hole Size:Dia 16mm
LED voltage:3v,5v,6v,12v,24v,36v,110v,220v etc.
Availability:

Specification

Model NO.
Mounting Hole DiameterΦ16mm、Φ19mm、Φ22mm
Head ShapeFlat round head,high flat round head ,power symbol head
Switch Combination1NO
Type of OperationMomentary
Shell MaterialStainless steel/Brass nickel plated
Switch Rating2A/DC36V
Protection LevelIP65
Max. Current5A
Max. Voltage250V
Illuminated or notIlluminated / non-illuminated
Luminous TypeRing
ColorRed/Yellow/Green/Blue/White/Bi-color/Tri-color
LED voltage3v,5v,6v,12v,24v,36v,110v,220v etc.
Welding foot/Terminal2/4 Pin Terminal
Product typePush Button Switch

The description of the waterproof momentary push button switch.

The installation size of this button is 16, 19, 22mm, you can choose the appropriate size according to your needs. When you install the waterproof ring on the back of the panel and then screw on the nut, it can play a good waterproof effect.

We have a variety of head shapes to choose from:Flat head、high flat head、annual、power symbol head and annual + power symbol head.People in European and American countries will have larger fingers, and this 16mm button has a small contact area. But don’t worry that the button area is too small, it will be difficult to operate. Our buttons have a high head style, which can better operate the buttons.

This product has three materials to choose from.

1.Nickel-plated brass:The button of this material has a low cost and is suitable for test equipment and automation equipment.

2.Stainless steel:The stainless steel shell is made of 304 stainless steel, which is a corrosion-resistant material. It is suitable for some harsh environments outdoors or by the sea.

3.The metallic appearance of zinc alloy products can be electroplated in various colors, such as red, green, black, etc. The appearance of the whole button is the color after electroplating, which is very beautiful and individual.

Any requirement or question,pls send us an e-mail now! It’s our great honor to do services for you!We will reply you ASAP. If no response within 24 Hours, please kindly check the spam in your mail box. Thank you for your trust and support!

*Pay attention to:This button only has a momentary style without a latching style.
