SVC-C series Servo motor control AC automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and servomotor as well. It has excellent features, such as small waveform distortion,high efficiency, high power factor, free from the effect or frequency variation of supply. It can be widely used in most situations where the voltage stabilization is required.
The optional feature of the unit includes over voltage and under voltage protection when the input power greatly exceeds stabilized range,the unit will automatically shut off to protect the unit and loads.

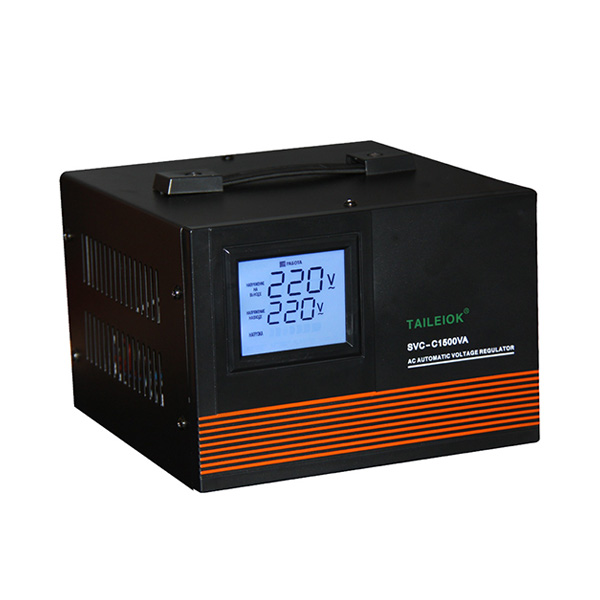

New design for the appearance .color can be custom made with big LCD display .Please note that the LCD display can show us with input voltage ,output voltage ,loading ,and Protection functions(over voltage,overload,over temperature ,low voltage,time delay) show to custom very clear.
SPECIFICATIONS
Input voltage | 140-260V AC |
Input frequnency | 50/60Hz |
Output voltage | 220V AC/110V AC |
Output precision | 220V+/-3%,110V+/-6% |
Time delay | 3′s short time,180′s long time |
Load power factor | 0.8 |
Phase | single phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI | |
DIMENSION WEIGHT
MODEL | QTY/CTN | MEAS(cm) | G.W.(kg) | N.W.(kg) | COMTAINER20(PCS) |
SVC-C 500VA | 4 | 42.5*25.5*36 | 16.5 | 14.5 | 2868 |
SVC-C 1KVA | 4 | 50*27.5*39.5 | 19.5 | 18 | 2070 |
SVC-C 1.5KVA | 4 | 50*27.5*39.5 | 23.5 | 22 | 2070 |
SVC-C 2KVA | 2 | 60*33*25.5 | 17.8 | 16 | 110 |
SVC-C 3KVA | 2 | 57*37.5*29.5 | 22 | 20 | 880 |
SVC-C 5KVA | 1 | 49*40*28.5 | 17.5 | 15 | 500 |
SVC-C 8KVA | 1 | 49*40*28.5 | 22.5 | 21 | 500 |
SVC-C 10KVA | 1 | 49*40*28.5 | 25.5 | 24 | 500 |
SVC-C 15KVA | 1 | 49.5*53*82 | 67 | 60 | 130 |
SVC-C 20KVA | 1 | 49.5*53*82 | 72 | 65 | 130 |
SVC-C 30KVA | 1 | 52*55*92 | 85 | 76 | 105 |
PRECAUTIONS:
| 1. The voltage of network input must conform to the demand of AVR, for optimum operation.2. Connect all plugs securely.3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)4. For best results, do not use if overload condition exists.5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids. 6. The relationship between the output capacity and input voltage as following picture and diagram: |
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
