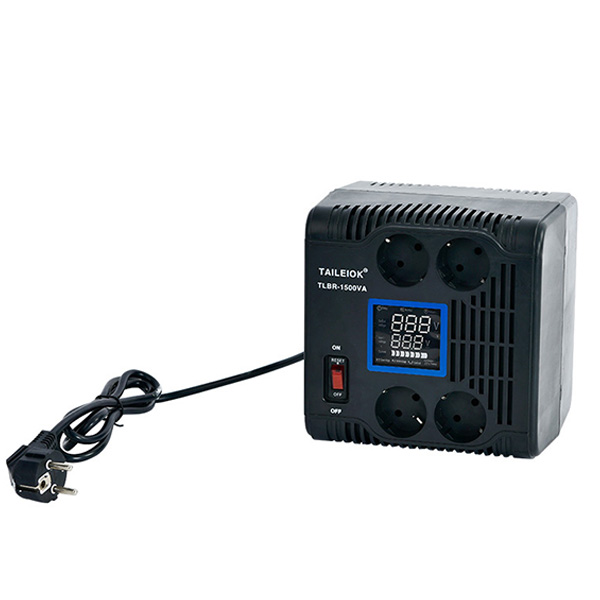

TLBR series single phase European socket RELAY CONTROL AC automatic voltage stabilizer,it’s a power supply equipment taht can automatically adjust the output voltage.Its function is to stabilizer the power supply voltage that fluctuates greatly and doesn’t meet the requirements of electrical equipment within its set value rage,so that various circuits or electrical appliances,the equipment can work normally under the rated working voltage.
Voltage stabilizer is widely used in areas with large power grid voltage fluctuations or large seasonal changes in grid voltage, and can provide stable voltages for computers, testing equipment, lighting systems, communication systems, and medical systems. Regulator safety protection, over-voltage protection, over-temperature protection, over-current protection. It only needs to be connected to the main power switch to protect all electrical appliances in the home. The shape is simple and the half-packed structure is adopted to perfectly integrate with the home environment.
FEATURES:
| FEATURE : | 1. Relay control2. Wide range voltage regulation 3. Technology:classis series ,El transformer or toroidal transformer,relay type 4. Automatic voltage regulation5. For 350VA&500VA,3 LED indicators for power,high voltage,low voltage For 600VA-2000VA,LED meter display 6. 2 output EURO sockets for 350VA& 500VA,4 output EURO sockets for 600VA&~2000VA 7. Insulation resistance:≥2MΩ |
| APPLICATIONS: | TV-SET / HI-FI / DVD / FAX / Copy Machine / Printer/ Scanner /Air Conditioner/Computer /Test Equipment/Fridge /Lighting/ Equipment ETC |
TLBR-350VA/500VA/600VA/1000VA/1500VA/2000VA | |
Power | 280W/400W/480W/800W/1200W/1600W |
Input voltage | 140-260v |
Input frequnency | 50/60Hz |
Output voltage | 220V AC |
Output precision | 220V+/-8% |
Time delay | delay/un-delay(180/3 seconds selectable) |
Efficiency: | >90% |
Load power factor | 0.8 |
Phase | single phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI | |
DIMENSION WEIGHT:
MODEL | QTY/CTN | MEAS(cm) | G.W.(kg) | N.W.(kg) | COMTAINER20(PCS) |
TLBR-350VA | 8 | 44.5*38.5*41 | 13.5 | 11.8 | 6300 |
TLBR-500VA | 8 | 44.5*38.5*41 | 14.5 | 12.8 | 6300 |
TLBR-600VA | 4 | 47*27*43 | 13.8 | 12.8 | 1300 |
TLBR-1000VA | 4 | 47*27*43 | 14.5 | 12.5 | 1300 |
TLBR-1500VA | 4 | 47*27*43 | 16.4 | 14.4 | 1300 |
TLBR-2000VA | 4 | 47*27*43 | 18.8 | 16.8 | 1300 |
Precautions:
1. The voltage of network input must conform to the demand of AVR, for optimum operation.
2. Connect all plugs securely.
3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)
4. For best results, do not use if overload condition exists.
5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids.
6. The relationship between the output capacity and input voltage as following picture and diagram:
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
TLBR series single phase European socket RELAY CONTROL AC automatic voltage stabilizer,it’s a power supply equipment taht can automatically adjust the output voltage.Its function is to stabilizer the power supply voltage that fluctuates greatly and doesn’t meet the requirements of electrical equipment within its set value rage,so that various circuits or electrical appliances,the equipment can work normally under the rated working voltage.
Voltage stabilizer is widely used in areas with large power grid voltage fluctuations or large seasonal changes in grid voltage, and can provide stable voltages for computers, testing equipment, lighting systems, communication systems, and medical systems. Regulator safety protection, over-voltage protection, over-temperature protection, over-current protection. It only needs to be connected to the main power switch to protect all electrical appliances in the home. The shape is simple and the half-packed structure is adopted to perfectly integrate with the home environment.
FEATURES:
| FEATURE : | 1. Relay control2. Wide range voltage regulation 3. Technology:classis series ,El transformer or toroidal transformer,relay type 4. Automatic voltage regulation5. For 350VA&500VA,3 LED indicators for power,high voltage,low voltage For 600VA-2000VA,LED meter display 6. 2 output EURO sockets for 350VA& 500VA,4 output EURO sockets for 600VA&~2000VA 7. Insulation resistance:≥2MΩ |
| APPLICATIONS: | TV-SET / HI-FI / DVD / FAX / Copy Machine / Printer/ Scanner /Air Conditioner/Computer /Test Equipment/Fridge /Lighting/ Equipment ETC |
TLBR-350VA/500VA/600VA/1000VA/1500VA/2000VA | |
Power | 280W/400W/480W/800W/1200W/1600W |
Input voltage | 140-260v |
Input frequnency | 50/60Hz |
Output voltage | 220V AC |
Output precision | 220V+/-8% |
Time delay | delay/un-delay(180/3 seconds selectable) |
Efficiency: | >90% |
Load power factor | 0.8 |
Phase | single phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI | |
DIMENSION WEIGHT:
MODEL | QTY/CTN | MEAS(cm) | G.W.(kg) | N.W.(kg) | COMTAINER20(PCS) |
TLBR-350VA | 8 | 44.5*38.5*41 | 13.5 | 11.8 | 6300 |
TLBR-500VA | 8 | 44.5*38.5*41 | 14.5 | 12.8 | 6300 |
TLBR-600VA | 4 | 47*27*43 | 13.8 | 12.8 | 1300 |
TLBR-1000VA | 4 | 47*27*43 | 14.5 | 12.5 | 1300 |
TLBR-1500VA | 4 | 47*27*43 | 16.4 | 14.4 | 1300 |
TLBR-2000VA | 4 | 47*27*43 | 18.8 | 16.8 | 1300 |
Precautions:
1. The voltage of network input must conform to the demand of AVR, for optimum operation.
2. Connect all plugs securely.
3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)
4. For best results, do not use if overload condition exists.
5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids.
6. The relationship between the output capacity and input voltage as following picture and diagram:
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
