| Model NO. | |
| Mounting Hole Diameter | Φ16mm |
| Head Shape | Flat round head, high flat round head, dome head ,power symbol head |
| Switch Combination | 1NO1NC,2NO2NC |
| Type of Operation | Momentary/Latching |
| Shell Material | Stainless steel/Brass nickel plated/Aluminum oxide (optional) |
| Protection Level | IP67 |
| Max. Current | 5A |
| Max. Voltage | 250V |
| Illuminated or not | Illuminated / non-illuminated |
| Illuminated type | Ring led,dot led |
| Color | Red/Yellow/Green/Blue/White/Bi-color/Tri-color |
| LED voltage | 2v,3v,5v,6v,12v,24v,36v,110v,220v etc. |
| Welding foot/Terminal | 3(non-illuminated)/5(Illuminated )/6(non-illuminated)/8(Illuminated) Pin Welding foot |
| Product type | Push Button Switch |

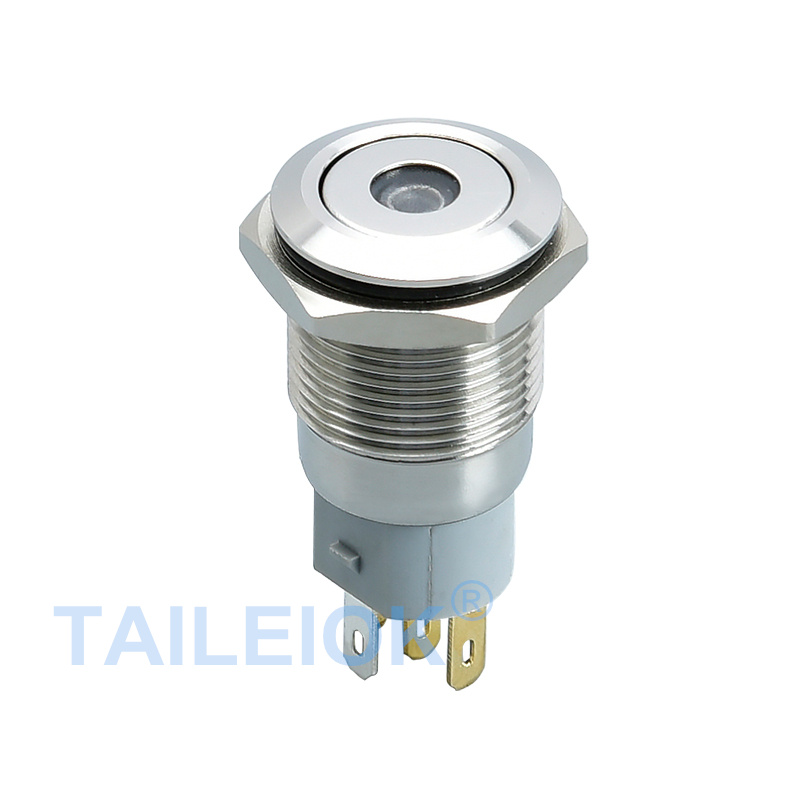

The description of the 16mm metal push button switch with LED.
1.The 16mm metal buttons are available in a variety of luminous colors: red(R), green(G), yellow(Y),blue(B), white(W). Of course, you can also choose to customize two or three colors.
2.16mm metal buttons have various pin positions: 3 pins/5 pins/6 pins/8 pins.The three-pin and six-pin are without lights, and the five-pin and eight-pin are with lights.
3.The button has two operation modes: one is self-recovery (press to power on, let go to power off), the other is self-locking (press to power on, then press to power off).
4.Metal buttons are available in different materials for you to choose from: Stainless steel/Brass nickel plated/Aluminum oxide.Among them, the brass plated nickel looks brighter and the cost performance is relatively high. You can choose the corresponding material according to your budget, needs and usage scenarios.
It is used in most mechanical equipment, both at home and abroad, more and more used in buildings of controlled electrical cabinet and power stations of the electric equipment.It is used in most mechanical equipment, both at home and abroad, more and more used in buildings of controlled electrical cabinet and power stations of the electric equipment.
In addition to the standard push button switches, different color switches and different indications can be generated, and the color matching can be changed according to the needs of the customer. The outer casing is made of stainless steel and brass (chrome) nickel. Durable, impact resistant, waterproof, corrosion resistant, and abrasion resistant. Built-in terminal blocks make wiring safer and more convenient. Therefore, it is usually popular with users.
We have a wide variety of switch and light products. If you are interested in these products, please feel free to send the inquiry. We can provide the products with high quality and factory price, and any detail can be discuss.
