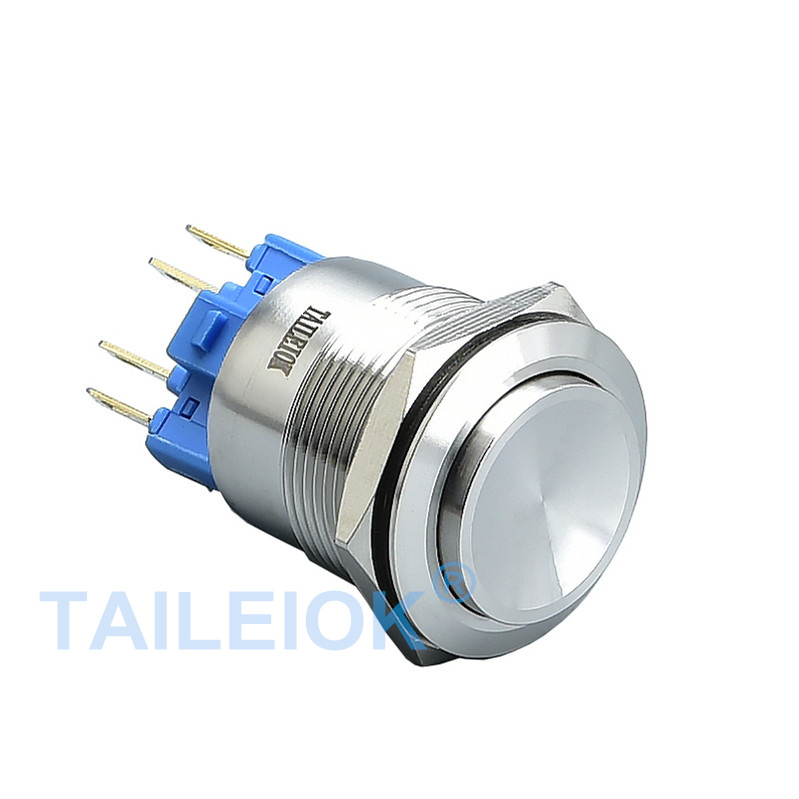

22mm Stainless Steel Push Button Switch

Important parameter:

Specifications Dimension Panel Cutout:Φ22mm
Place of Origin:Zhejiang, China
Protection Level:IP67
Max. Current:5A
Max. Voltage:250V
Operation type:Momentary/Latching
Illuminated or not:Illuminated or non-illuminated
Illuminated type:Ring led,dot led
Head type:Flat round head,high flat round head,dome head ,power symbol head
Material:Stainless steel/Aluminum oxide
22mm Metal Push Button Switch
Type:6 PIN
Welding foot/Terminal:6 Pin Welding foot
Product type:Push Button Switch
Mounting Hole Size:Dia 22mm
LED voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v etc.

What is 22mm 6pin metal micro switch push button?

The mounting hole size of this product is 22mm, and the buttons can be produced in different types, such as high head without light, flat head without light, high head with ring light, flat head with ring light, high head with single point light, flat head with single point light, high head power symbol , flat head power symbol, etc.

The products have different materials, such as stainless steel shell, electroplated aluminum shell, can realize red, green, yellow, blue, white, black, gold and other colors.

The product consists of 6 pins, 2 for light pins, 4 for switch pins, and the 4 pins are divided into 2 NO pins and 2 NC pins, this switch has no public pin.

You can choose a variety of luminous colors: red, yellow, blue, green, white (regular colors). But let us also accept customized colors, please tell us your needs, we will customize it for you.

The product with lamp type has different voltages, such as 3V, 6V, 12V, 24V, 36V, 48V, 110V, 220V etc. We can customize special requirement voltage.

How to connect the wire with the micro switch push button?

If the switch lamp is required to indicate the working state, you can connect the switch pin to the lamp pin, so that the switch controls equipment also controls the lamp, the lamp is on and the equipment operates. It is an indicator of the working state
