AVR-1000W
TAILEIOK
AVR-1000W

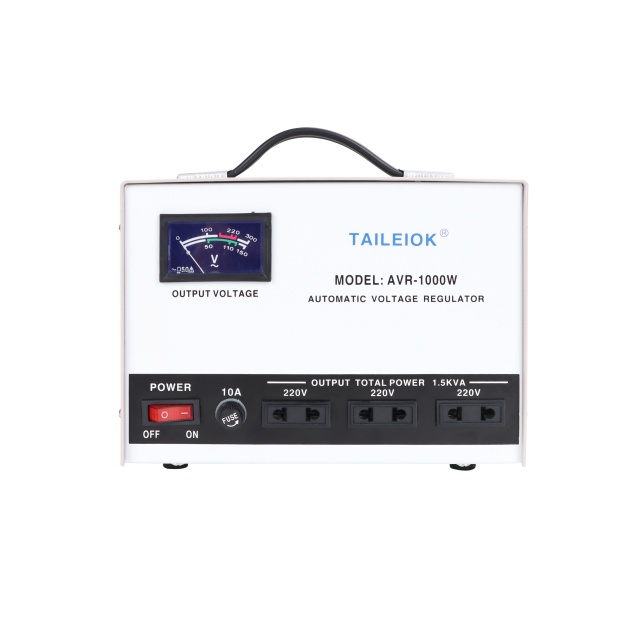

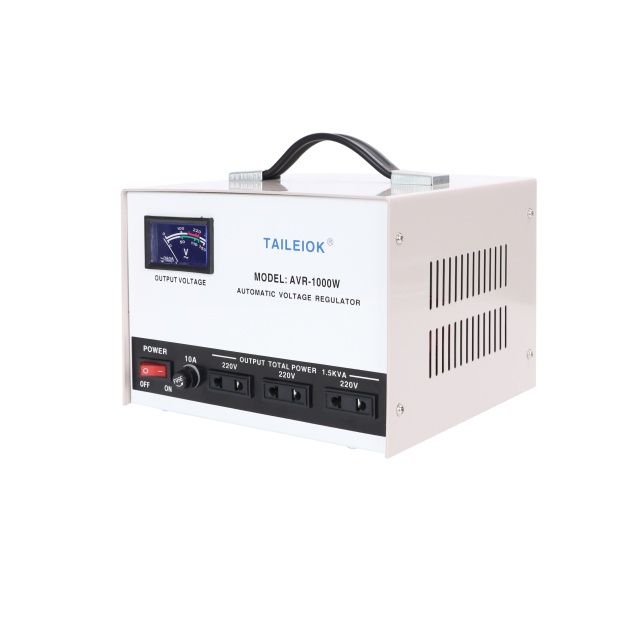

AVR-1000W Analog Meter 110V 220V Automatic Voltage Stabilizer , which is the leading select of the American chip by our company, uses the computer digitization procedure to Control the functional movement of the entire machine. It improved many shortcomings of the formerly simulated voltage stabilizer and made the quality of the products to be more reliable, the performance to be more stable, the function to be more formidable.
And there are more than 10 kinds of different appearance for the SVC series .Customer can select which one you like ,and select which socket type with plug you like ,and also can make different color for the product .
Features:
1. Servo motor type/Relay type
2. 110V and 220V sockets
3.The range voltage regulation:90-280V or 100-270V,or 140-260V
4.Automatic voltage regulation
5.Display:Analog meter
6.Protection functions:over voltage,overload,over temperature
low voltage,the selective time delay, the anti- impact, the LED multi- demonstrations
7.Waveform distortion:no additional waveform distortion
8.Dielectric strength:1500V/1min
9.Insulation resistance:≥2MΩ
SPECIFICATIONS
Specification | AVR-500VA | AVR-1000VA | AVR-1500VA | AVR-2000VA | AVR-3000VA | AVR-5000VA | |
Input | Phase | Single phase | |||||
Voltage | AC140V-260V/50V-130V | ||||||
Frequency | 50Hz/60Hz | ||||||
Output | Voltage | 220V±3%,110V±6% | |||||
Capacity | 500W | 1000W | 1500W | 2000W | 3000W | 5000W | |
Frequency | 50Hz/60Hz | ||||||
Protection | Low Voltage | AC184V±4V | |||||
Over Voltage | AC246V±4V | ||||||
Time Delay | 6sec/180min Selectable | ||||||
Over Load/Short Ciruit | YES | ||||||
Efficiency | AC-AC | 95% | |||||
Acoustic | Noise Level | ≤50dB | |||||
Environmental | Temperature | -5-45 Degree | |||||
Humidity | Less than 90% | ||||||
QTY(pcs) | 20FT | 2868 | 2070 | 2070 | 1100 | 880 | 500 |
AVR-1000W Analog Meter 110V 220V Automatic Voltage Stabilizer , which is the leading select of the American chip by our company, uses the computer digitization procedure to Control the functional movement of the entire machine. It improved many shortcomings of the formerly simulated voltage stabilizer and made the quality of the products to be more reliable, the performance to be more stable, the function to be more formidable.
And there are more than 10 kinds of different appearance for the SVC series .Customer can select which one you like ,and select which socket type with plug you like ,and also can make different color for the product .
Features:
1. Servo motor type/Relay type
2. 110V and 220V sockets
3.The range voltage regulation:90-280V or 100-270V,or 140-260V
4.Automatic voltage regulation
5.Display:Analog meter
6.Protection functions:over voltage,overload,over temperature
low voltage,the selective time delay, the anti- impact, the LED multi- demonstrations
7.Waveform distortion:no additional waveform distortion
8.Dielectric strength:1500V/1min
9.Insulation resistance:≥2MΩ
SPECIFICATIONS
Specification | AVR-500VA | AVR-1000VA | AVR-1500VA | AVR-2000VA | AVR-3000VA | AVR-5000VA | |
Input | Phase | Single phase | |||||
Voltage | AC140V-260V/50V-130V | ||||||
Frequency | 50Hz/60Hz | ||||||
Output | Voltage | 220V±3%,110V±6% | |||||
Capacity | 500W | 1000W | 1500W | 2000W | 3000W | 5000W | |
Frequency | 50Hz/60Hz | ||||||
Protection | Low Voltage | AC184V±4V | |||||
Over Voltage | AC246V±4V | ||||||
Time Delay | 6sec/180min Selectable | ||||||
Over Load/Short Ciruit | YES | ||||||
Efficiency | AC-AC | 95% | |||||
Acoustic | Noise Level | ≤50dB | |||||
Environmental | Temperature | -5-45 Degree | |||||
Humidity | Less than 90% | ||||||
QTY(pcs) | 20FT | 2868 | 2070 | 2070 | 1100 | 880 | 500 |
