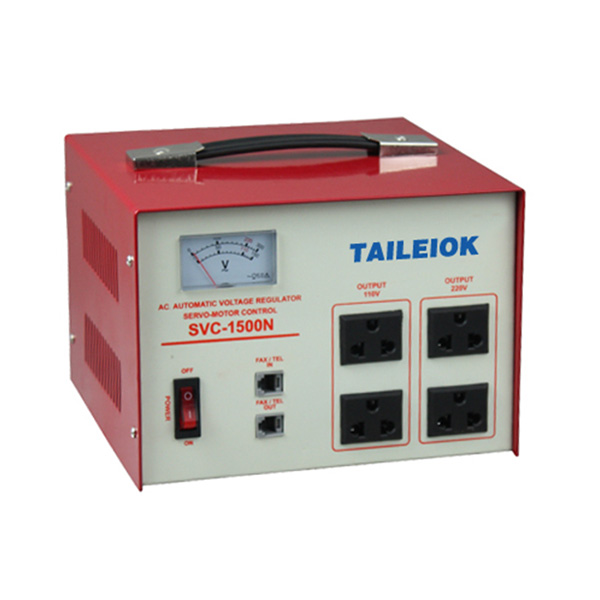

SVC series Servo motor control AC automatic voltage stabilizer , General ( Automatic Voltage Stabilizer for home),Servo motor automatic voltage stabilizer for home is one kind of our competitive products; consist of contact auto voltage regulator, servo motor, automatic control circuit and etc. When the voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then the output voltage will be adjusted to rated value and get a steady state.
Servo motor control automatic voltage stabilizer for home is general type, which has the function of connecting via the commercial power. Compared with other voltage stabilizers, it has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time. Moreover, Servo motor control automatic voltage stabilizer for home is provided with short time delay and over voltage protection, the long time delay and under voltage protection also can be set according to user requirement. This product is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
SPECIFICATIONS
| Specification | SVC-500VA | SVC-1000VA | SVC-1500VA | SVC-2000VA | SVC-3000VA | SVC-5000VA | |
| Input | Phase | Single phase | |||||
| Voltage | AC140V-260V/50V-130V | ||||||
| Frequency | 50Hz/60Hz | ||||||
| Output | Voltage | 220V±3%,110V±6% | |||||
| Capacity | 400W | 800W | 1200W | 1600W | 2400W | 4000W | |
| Frequency | 50Hz/60Hz | ||||||
| Protection | Low Voltage | AC184V±4V | |||||
| Over Voltage | AC246V±4V | ||||||
| Time Delay | 3-7sec/3-7min Selectable | ||||||
| Over Load/Short Ciruit | YES | ||||||
| Packaging | pcs per Carton | 4 | 2 | 1 | |||
| Shipping Wt.(kg) | 16.6 | 19.5 | 23.5 | 17.8 | 22 | 17.5 | |
| Package Dimensions(cm) | 42.5*25.5*36 | 50*27.5*39.5 | 60*33*25.5 | 57*37.5*29.5 | 49*40*28.5 | ||
| Efficiency | AC-AC | 95% | |||||
| Acoustic | Noise Level | ≤50dB | |||||
| Environmental | Temperature | -5-45 Degree | |||||
| Humidity | Less than 90% | ||||||
| QTY(pcs) | 20FT | 2868 | 2070 | 2070 | 1100 | 880 | 500 |
1. The voltage of network input must conform to the demand of AVR, for optimum operation.
2. Connect all plugs securely.
3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)
4. For best results, do not use if overload condition exists.
5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids.
6. The relationship between the output capacity and input voltage as following picture and diagram:
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
