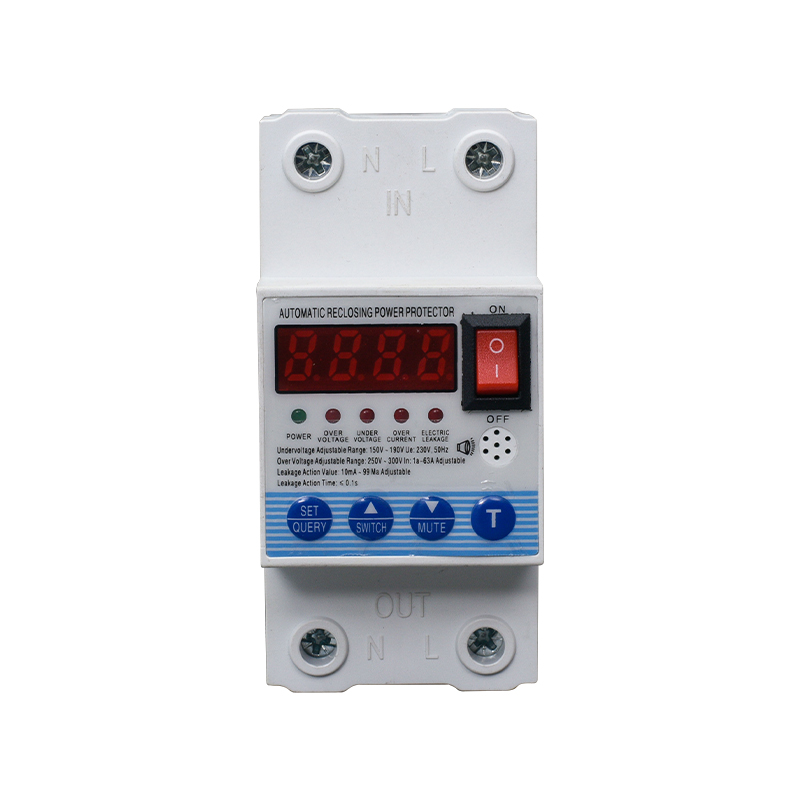

Product features
KE/1-63AS series is one of voltage current protectors developed and manufactured by adopting international advanced technology, supplied with multiple funcutions(over under voltage,over current,auto reconnect ,voltage current display and adjustable voltage, current & time ),widely used in the environments of electric ,industry and commerce.
Mode code | KE/1-63AS | KE/1-63AS | |
Pole number | 2P | 2P | |
Rated voltage | AC 220V/230V | AC 110V/120V | |
Rated current | 1-40A (Default 40A) , 1-63A(Default 63A) | ||
Over-voltage range | 240V-300V (Default 270V) | 130V-160V (Default 135V) | |
Under -voltage range | 100V-210V (Default 170V ) | 70V-110V (Default 90V) | |
Tripping time | 1-30S (Default 0.5S ) | ||
Reconnect / Power on time | 1-500S (Default 5S ) | ||
Power consumption | < 2W | ||
Ambient temperature | -20 ~ 50 C | ||
Installation | 35mm Din rail | ||
Electro-mechanical life | 100,000 | ||
Exterior dimension | 82x35x65mm | ||
Rated limit overcurrent | 40,63A,80A,100A |
