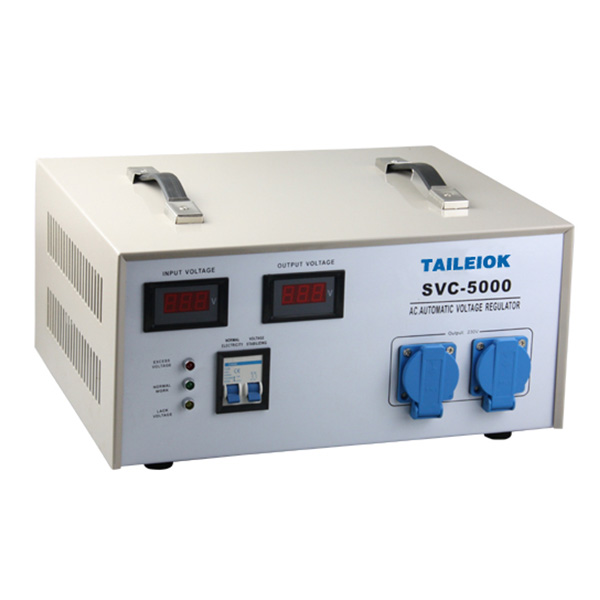

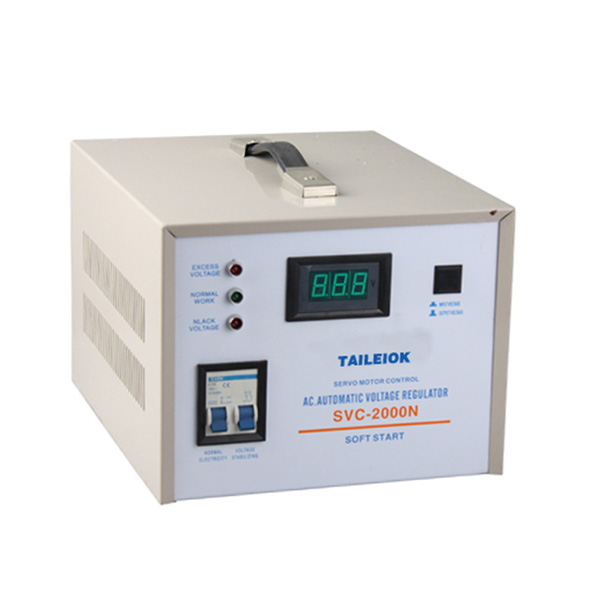

SVC series Servo motor control AC automatic voltage regulator , which is the leading select of the American chip by our company, uses the computer digitization procedure to Control the functional movement of the entire machine. It improved many shortcomings of the formerly simulated voltage stabilizer and made the quality of the products to be more reliable, the performance to be more stable, the function to be more formidable.
And there are more than 10 kinds of different appearance for the SVC series .Customer can select which one you like ,and select which socket type with plug you like ,and also can make different color for the product .
SPECIFICATIONS
| Specification | SVC-500VA | SVC-1000VA | SVC-1500VA | SVC-2000VA | SVC-3000VA | SVC-5000VA | |
| Input | Phase | Single phase | |||||
| Voltage | AC140V-260V/50V-130V | ||||||
| Frequency | 50Hz/60Hz | ||||||
| Output | Voltage | 220V±3%,110V±6% | |||||
| Capacity | 400W | 800W | 1200W | 1600W | 2400W | 4000W | |
| Frequency | 50Hz/60Hz | ||||||
| Protection | Low Voltage | AC184V±4V | |||||
| Over Voltage | AC246V±4V | ||||||
| Time Delay | 3-7sec/3-7min Selectable | ||||||
| Over Load/Short Ciruit | YES | ||||||
| Packaging | pcs per Carton | 4 | 2 | 1 | |||
| Shipping Wt.(kg) | 16.6 | 19.5 | 23.5 | 17.8 | 22 | 17.5 | |
| Package Dimensions(cm) | 42.5*25.5*36 | 50*27.5*39.5 | 60*33*25.5 | 57*37.5*29.5 | 49*40*28.5 | ||
| Efficiency | AC-AC | 95% | |||||
| Acoustic | Noise Level | ≤50dB | |||||
| Environmental | Temperature | -5-45 Degree | |||||
| Humidity | Less than 90% | ||||||
| QTY(pcs) | 20FT | 2868 | 2070 | 2070 | 1100 | 880 | 500 |
1. The voltage of network input must conform to the demand of AVR, for optimum operation.
2. Connect all plugs securely.
3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)
4. For best results, do not use if overload condition exists.
5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids.
6. The relationship between the output capacity and input voltage as following picture and diagram:
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
