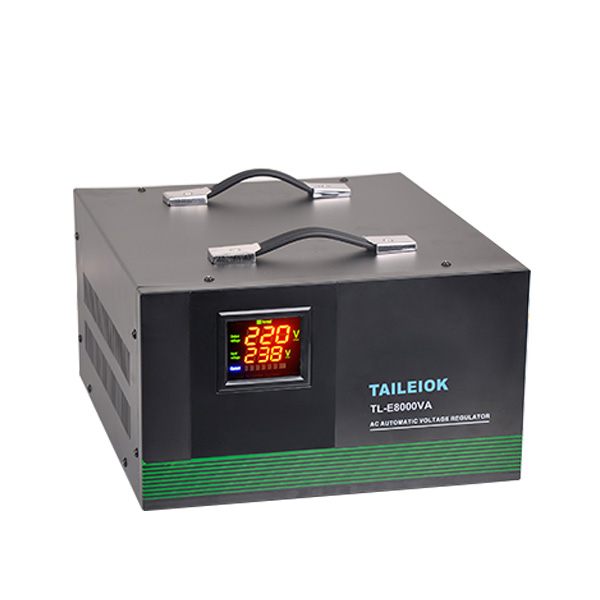

SVC-E series Servo motor control AC automatic voltage stabilizer . which is a device designed for maintaining a stable mains voltage and power supply of electrical appliances household use 220V.50/60Hz.
Voltage fluctuations in the network above the permissible limits lead to negative consequences for electrical equipment .AC voltage Stabilizers “TAIELIOK” are designed to provide high-quality operation of various household in under conditions of unstable voltage in the network
This series of voltage stabilizer is designed in accordance with international standards for the protection of connected devices from emergency surges of electrical energy.
SPECIFICATIONS
Input voltage | 140-260V AC |
Input frequnency | 50/60Hz |
Output voltage | 220V AC/110V AC |
Output precision | 220V+/-3%,110V+/-6% |
Time delay | 3′s short time,180′s long time |
Load power factor | 0.8 |
Phase | single phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI | |
DIMENSION WEIGHT
MODEL | QTY/CTN | DIMENSION(cm) | G.W.(kg) | N.W.(kg) | QTY IN 20′ft (PCS) |
SVC-E 500VA | 4 | 42.5*25.5*36 | 16.5 | 14.5 | 2868 |
SVC-E 1KVA | 4 | 50*27.5*39.5 | 19.5 | 18 | 2070 |
SVC-E 1.5KVA | 4 | 50*27.5*39.5 | 23.5 | 22 | 2070 |
SVC-E 2KVA | 2 | 60*33*25.5 | 17.8 | 16 | 1100 |
SVC-E 3KVA | 2 | 57*37.5*29.5 | 22 | 20 | 880 |
SVC-E 5KVA | 1 | 49*40*28.5 | 17.5 | 15 | 500 |
SVC-E 8KVA | 1 | 49*40*28.5 | 22.5 | 21 | 500 |
SVC-E 10KVA | 1 | 49*40*28.5 | 25.5 | 24 | 500 |
SVC-E 15KVA | 1 | 49.5*53*82 | 67 | 60 | 130 |
SVE-E 20KVA | 1 | 49.5*53*82 | 72 | 65 | 130 |
SVE-E 30KVA | 1 | 50*55*92 | 85 | 76 | 105 |
PRECAUTIONS:
1. The voltage of network input must conform to the demand of AVR, for optimum operation. 2. Connect all plugs securely. 3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow) 4. For best results, do not use if overload condition exists. 5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids. 6. The relationship between the output capacity and input voltage as following picture and diagram: |  |
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
