| Model NO. | LB10A-P10, LB10A-G10 |
| Mounting Hole Diameter | Φ10mm |
| Head Shape | Flat round head/High flat round head |
| Switch Combination | 1NO |
| Type of Operation | Momentary/Latching |
| Shell Material | Stainless steel/Brass nickel plated/Aluminum oxide(optional) |
| Switch Rating | 3A/250VAC |
| Protection Level | IP65,IK08 |
| Max. Current | 3A |
| Max. Voltage | 250V |
| Illuminated or not | Non-illuminated |
| Welding foot/Terminal | 2 Pins Terminal |
| Product type | Push Button Switch |
Flat round head:

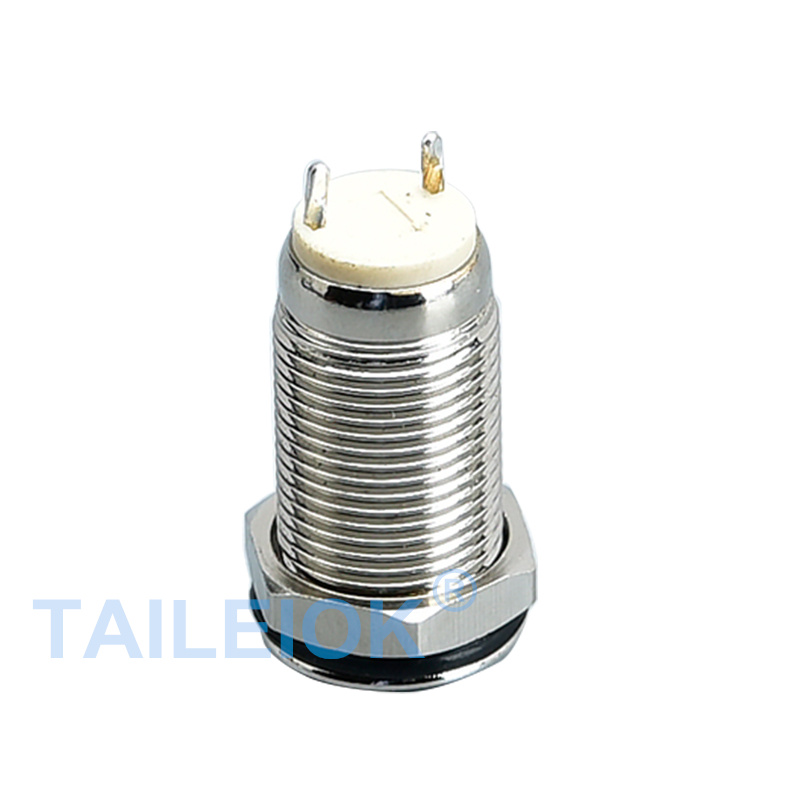

1.10mm metal button has two functions: one is Momentary (press to power on, let go to power off), and the other is Latching type (press to lock to power on, then press the button to pop up to power off).
2.10mm metal button has two head shapes: one is flat and the other is high flat.
3. It should be noted that the 10mDimension:m metal button does not have a lighted style, so there is no need to select the voltage when purchasing.
4. Shell material type of metal button: You can choose brass nickel-plated, stainless steel and aluminum oxide shell (note: stainless steel and aluminum oxide shell are customized styles, except for quality problems, it will not be returned or replaced)
5.Application scenarios of 10mm mini metal buttons: medical equipment, car modification, computer modification, industrial kitchen, etc.
10mm Push button switch refers to the use of a button to push the drive structure to make the moving contact and the static contact on or off, so as to realize the circuit switch.
The 10mm push button switch has a simple structure and is widely used in main control appliances. In electrical equipment and mechanical equipment, there are two kinds of automatic control equipment and manual control equipment.
The plastic material of the 10mm push button switch is nylon PA66, which can withstand high temperatures up to 200 degrees.
