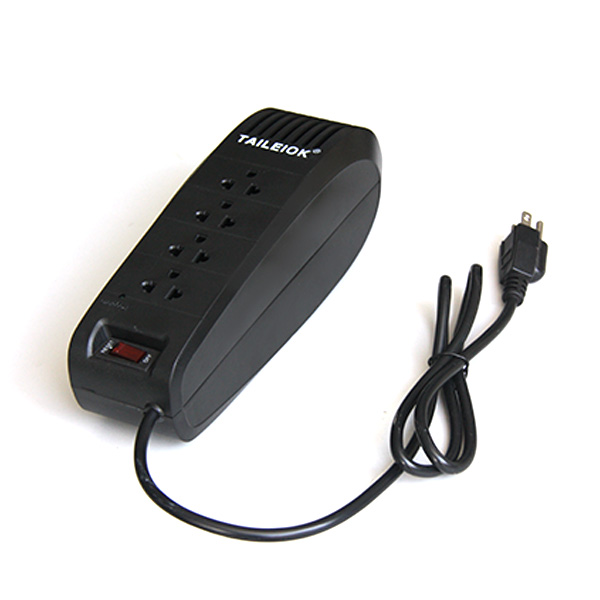

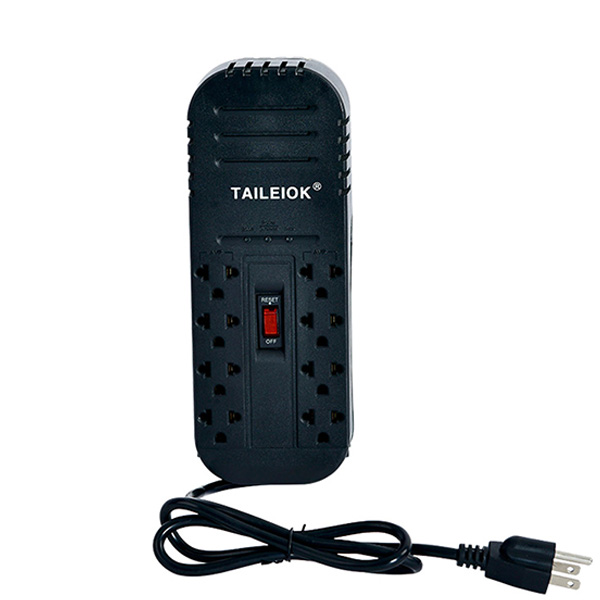

TLCR series single phase South American socket RELAY CONTROL AC automatic voltage regulator , which is simple and lightweight special design and only used in American special country. Meanwhile we choose square transformer which is produced by ourselves mainly for small power ,its cost is very low and its volume is very small and easy to carry. We have four or eight output socket for choosing and it connect several appliance in one time and saving fee.
We produced our new pcb board by ourselves and choosing new designing and reduce many not necessary protection and keep simple function in order to increase its life time.
Our stabilizer can make voltage with 110V and 220V output and it can protect TV, printing machine, fan, refrigeration working well in low voltage and avoid damaging these appliance in low voltage.
FEATURES:
FEATURE : | 1. Relay control 2. Wide range voltage regulation 3. Technology:classis series ,El transformer or toroidal transformer,relay type 4. Automatic voltage regulation 5. 8 output USA sockets 6. Insulation resistance:≥2MΩ |
APPLICATIONS: | TV-SET / HI-FI / DVD / FAX / Copy Machine / Printer/ Scanner /Air Conditioner/Computer /Test Equipment/Fridge /Lighting/ Equipment ETC |
TLCR-250VA/350VA/500VA/600VA | |
Power | 250W/350W/500W/600W |
Input voltage | 140-260v/90-130v |
Input frequnency | 50/60Hz |
Output voltage | 220V AC/110V AC |
Output precision | 220V+/-8%,110V+/-10% |
Time delay | delay/un-delay(180/3seconds selectable) |
Efficiency: | >90% |
Load power factor | 0.8 |
Phase | single phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI |
PRECAUTIONS:
1. The voltage of network input must conform to the demand of AVR, for optimum operation.2. Connect all plugs securely.3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow)4. For best results, do not use if overload condition exists.5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids.6. The relationship between the output capacity and input voltage as following picture and diagram: |
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
