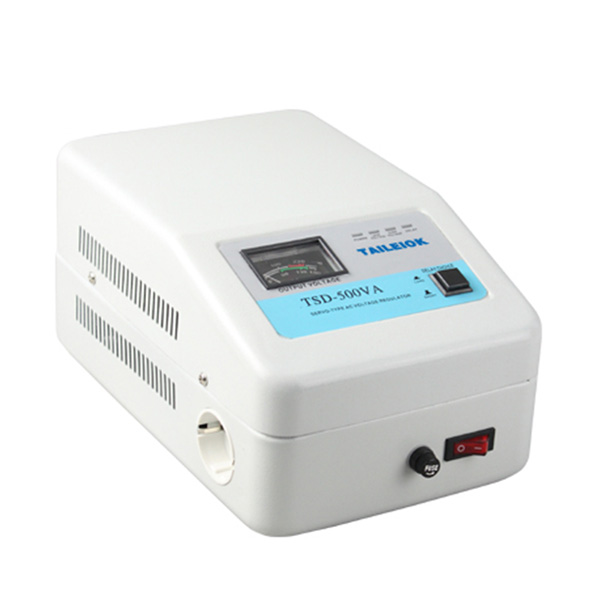

TSD wall mount series RELAY CONTROL AC automatic voltage stabilizer , which is a popular product in Russia. The working principle of relay type voltage stabilizer is as follows: the control line regulating plate adjusts the voltage line through the closure of the relay to make the output voltage reach balance.
This series voltage stabilizer is designed to to be hung on a wall to save space.Automatically executes protection, when protection finished, goes off. The protections include high voltage, low voltage, overload, high temperature, circuit breaker. There is smart cooling system in 5KVA~10KVA stabilizer.
Unstable voltage will cause fatal injury or wrong operation of equipment, affect production, cause delivery delay, quality instability and other losses.At the same time, the aging of equipment will be accelerated, the service life will be affected and even the accessories will be burned out, which will make the owners face the trouble of needing maintenance or need to update the equipment in a short time, thus wasting resources.In serious cases, safety accidents even occur, causing incalculable losses. Therefore, the use of voltage regulator is essential for the use of electrical equipment, especially for the high and new technology and precision equipment with strict voltage requirements.
THE ADVANTAGES OF THIS MODEL:
1.Wide input voltage:AC 140~260V or 100-260VAC Or customize
2.High technology:programmed control computerized
3.Fashion design:LED display which can show all protection functions.
4.Quality insurance:Main spare parts made by ourselves,for example,transformer,PCB.
5.Perfect protection function:over/low voltage protection,over-heat/load protection,short circuit protection.
6.Option function:with voltage regulator and mains supply two kind output voltage choice function,in mains supply relatively stable season,the user can put voltage stabilizer in mains supply state,there is no power consumption,it is economic and convenient.
7.High efficiency:More than 95%
SPECIFICATIONS:
Input voltage | 140-260v/90-130v |
Input frequnency | 50/60Hz |
Output voltage | 220V AC/110V AC |
Output precision | 220V+/-8%,110V+/-10% |
Time delay | 3′s short time, 180′s long time |
Load power factor | 0.8 |
Phase | single phase |
Operating temperature | 0-40℃ |
Storage temperature | -15℃-45℃ |
Operating relative humidity | 10%RH-102%RH |
Customize option for specification and availability please contact TAILEI | |
DIMENSION & WEIGHT:
MODEL | QTY/CTN | MEAS(cm) | G.W.(kg) | N.W.(kg) | CONTAINER 20(PCS) |
TSD-500VA | 4 | 51*37*41 | 17.5 | 16.5 | 1440 |
TSD-1000VA | 4 | 51*37*41 | 20.67 | 19.67 | 1440 |
TSD-1500VA | 4 | 51*37*41 | 23.9 | 22.9 | 1440 |
TSD-2000VA | 4 | 51*37*41 | 29.2 | 28.2 | 1440 |
TSD-3000VA | 2 | 44.5*34.5*43.5 | 22.2 | 20.6 | 830 |
TSD-5000VA | 2 | 44.5*34.5*43.5 | 32 | 30 | 830 |
TSD-10000VA | 1 | 50.5*37.5*23 | 22.67 | 24.4 | 640 |
PRECAUTIONS:
| 1. The voltage of network input must conform to the demand of AVR, for optimum operation. 2. Connect all plugs securely.3. Always turn AVR power switch on first, the turn appliance power switch on.(Failure to do so may cause AVR fuse to blow) 4. For best results, do not use if overload condition exists. 5. Do not use in overly humid or flammable surroudings; avoid contact with any liquids. 6. The relationship between the output capacity and input voltage as following picture and diagram: |  |
Overload | Utmost using time |
20% | 60 minutes |
40% | 32 minutes |
60% | 5 minutes |
Long time overload is forbidden.
