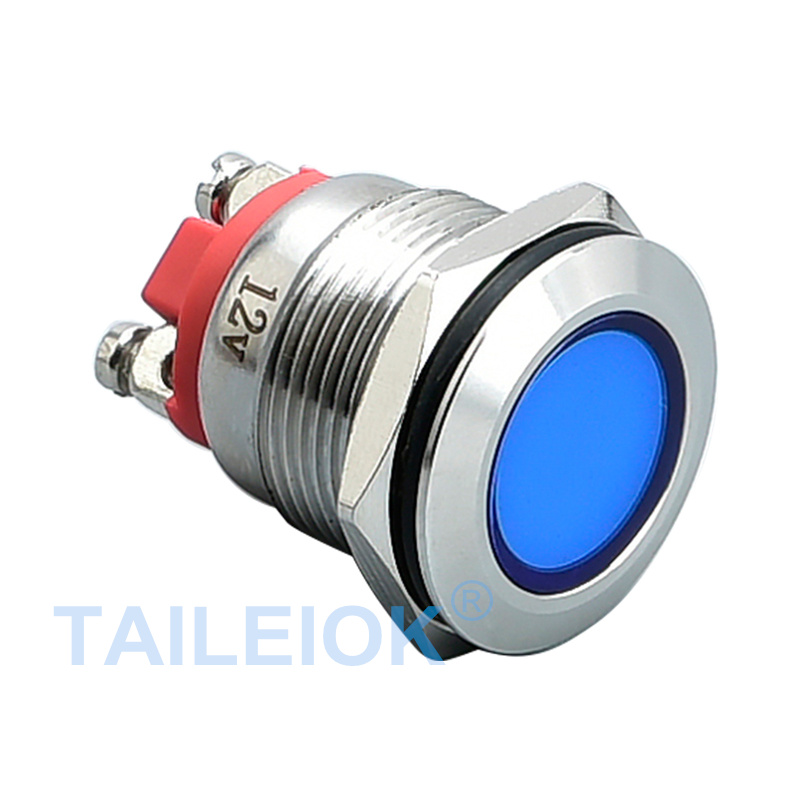

19mm Waterproof Pilot Lamp Signal LED Indicator Lights With Screw Terminal

Important parameter:

Specifications Dimension Panel Cutout:Φ19mm
Place of Origin:Zhejiang, China
Brand Name:TAILEIOK
Protection Level:IP67
Max. Current:5A
Max. Voltage:250V
Switch Combination:1NO1NC,2NO2NC
Operation type:Momentary/Latching
Illuminated or not:Illuminated or non-illuminated
Illuminated type:Ring led,dot led
Head type:Flat round head,high flat round head,dome head ,power symbol head
Material:Stainless steel/Brass nickel plated/Aluminum oxide
19mm Metal Push Button Switch
Color:Red/Yellow/Green/Blue/White/Bi-color/Tri-color
Type:5 PIN
Welding foot/Terminal:5 Pin Welding foot
Product type:Push Button Switch
Mounting Hole Size:Dia 19mm
LED voltage:2v,3v,5v,6v,12v,24v,36v,110v,220v etc.
Availability:

Specifiction

Model NO.LB19C-D/▲▼/◎
Mounting Hole DiameterΦ19mm
Head ShapeFlat round head
Shell MaterialStainless steel/Brass nickel plated
Luminescence TypeWhole circle luminescence
Protection LevelIP65
Lamp ColorYellow/blue/red/green/white
LED voltage12v,24v,110v,220v
TerminalScrew Terminal
ApplicationCar Boat Marine
Product typeEquipment Indicator Lights(LED)



The 19mm indicator light led product is introduced as follows:

19mm 6V indicator light metal shell adopts numerical control technology processing, to ensure the appearance of the atmosphere beautiful, high precision

6V pilot indicator light LED adopts a non-polar LED, which can be used by customers without any positive or negative level. The service life of LED is 50,000 hours

Panel indicator IP65, installation aperture is 8MM 5/16 inches

Socket head indicator voltage can do 3V6V 12V 24V110V 220V 380V and so on

6V red metal indicator light can be red, yellow, green, blue and white in 5 colors

Panel indicator light voltage can do 3V6V 12V 24V110V 220V 380V and so on

19mm metal pilot indicator light can be redyellowgreen, blue and white in 5 colors

Indicator lights are very versatile and are usually used in The coffee machine,The water heater ,Water dispenser,Baked Fried furnace,Meat grinder ,automation ,Test equipment, Disinfection cabinet,The dishwasher,Barbecues, Cleaning machine,Food machinery,The freezer,blender,Modified car,Shoe machine,Refrigeration equipment,Cooking stove,Waterproof air case,Induction cooker,Lampblack purifier,Vending machines,Charging pile,The solar energy,Power box ,The subway,The dashboard, wine,Audio equipment ,Distribution box,Sound effector,Medical equipment,Car panel,player,Audio equipment,Distribution box,Medical equipment ,Power amplifier player,The generator,Electric welding machine,Cable tray,inverter,Voltage regulator,Access control device,Automobile and motorcycle accessories. Our indicator light through European Union CE certification, ISO90001 quality management system certification and so on, the quality is stable, the style is complete, can be customized according to the customer’s needs of different styles of indicator light.

If you need anything, please send your emails to our company.
